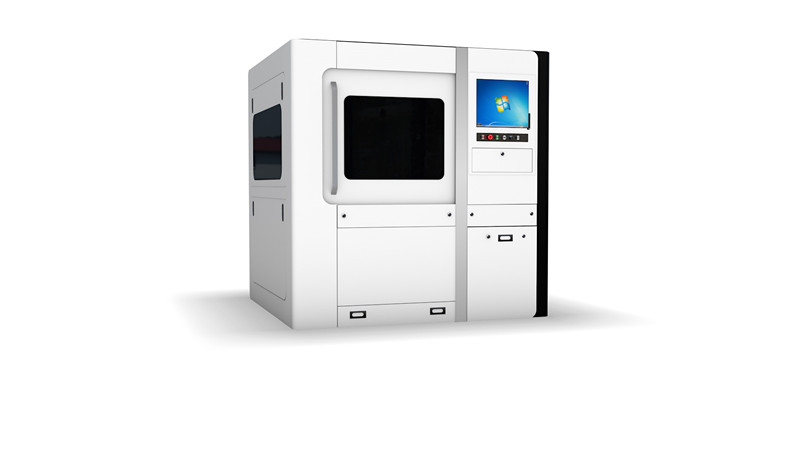

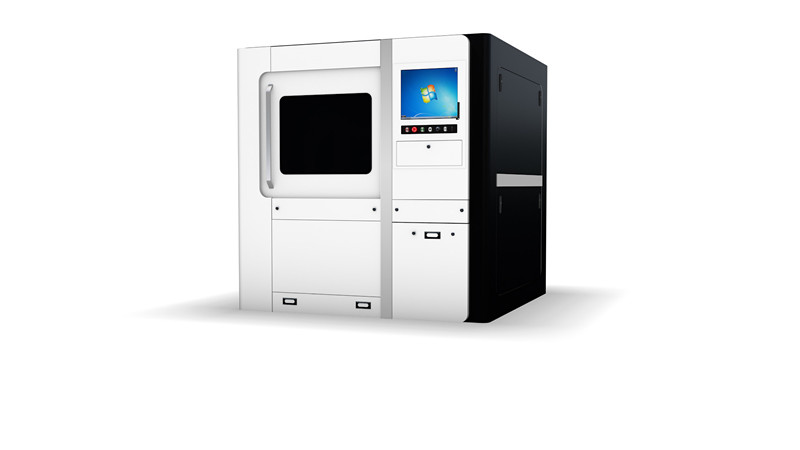

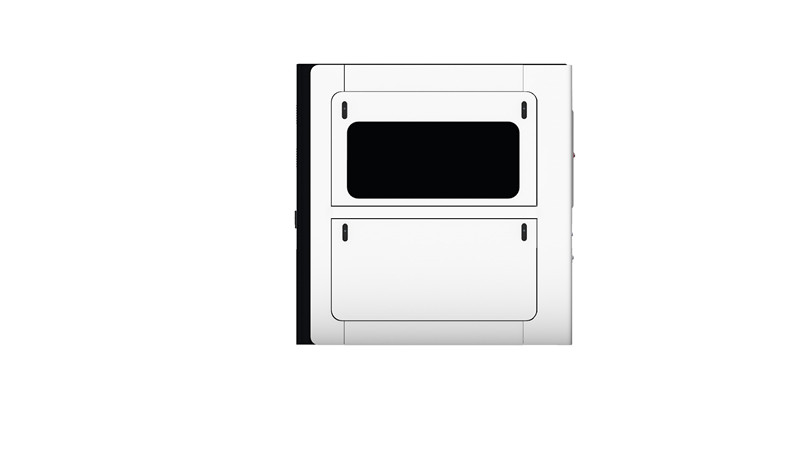

Small precision fiber laser cutting machine

Features：

1.It adopts a marble tabletop with characteristics such as low linear expansion coefficient, high hardness, and anti magnetism to ensure stable accuracy and excellent workpiece quality when machine bed runing at high speed.

2. Its repeated positioning accuracy is high, which can reach ± 0.005mm.

3. This laser cutting machine has a fixed fixture for sheet metal, which ensures high cutting efficiency, beautiful cutting seams, and low operating costs It is mainly used for fine processing for metal sheets.

Specification:

1. Model: LF-6080/5030/6090/1510

2. Input voltage: 220/380V

3. Positioning accuracy: 0.05mm

4. Laser wavelength: 1064nm

5. Drive mode: Servo motor

6. Cutting area: 600x800/500x300/600x900/1500x1000mm

7. Cooling method: Industrial cycle water cooling

8. Location positioning: Red light

9. Drive mode: Dual drive and rack

10. Laser power: 500/4000W

11. Minimum line width: 0.1mm

12. Maximum operating speed: 600 meters per minute

13. Cutting thickness: depends on laser power

Application materials: mainly used for cutting various metal materials such as stainless steel, carbon steel, silver, gold, aluminum, aluminum alloys, titanium alloys, brass, and copper.
