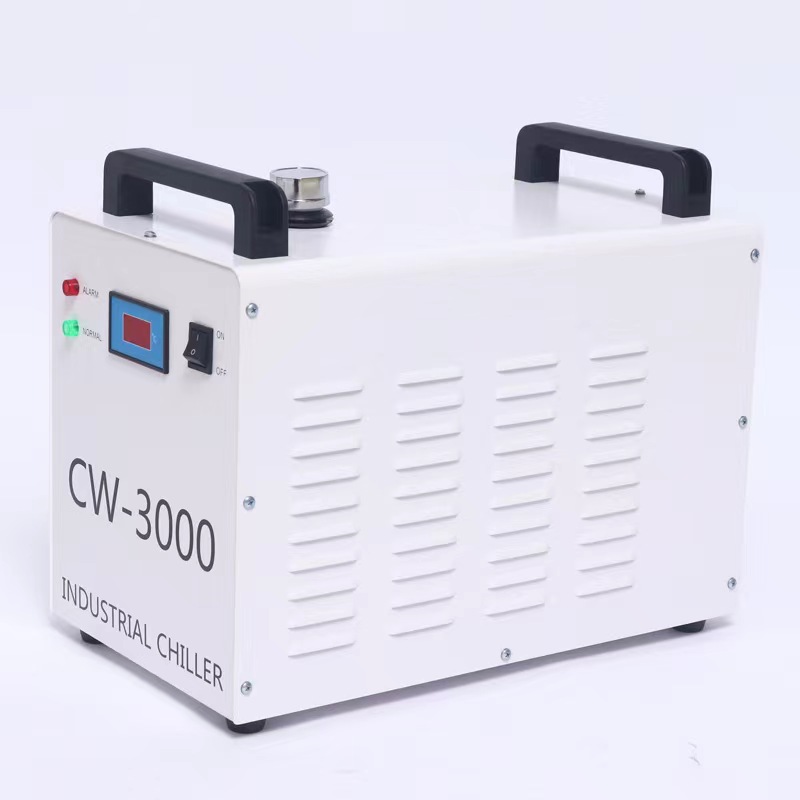

CW-3000 Water Cooling Chiller

1. Radiating capacity: 50W / ℃;

2. Small thermolysis water cooler, energy saving, long working life and simple operation;

3. With completed water flow and over high temperature alarm functions;

4. Multiple power specifications;

Order online

CW-3000 Water Cooling Chiller

Summary

CW-3000 series thermolysis type water cooler has compact design,with energy saving,high cost performance,good protection and alarm system. It’s mainly used on the equipment for heat exchange between the heat and the air environment.

Features:

1. Radiating capacity: 50W / ℃;

2. Small thermolysis water cooler, energy saving, long working life and simple operation;

3. With completed water flow and over high temperature alarm functions;

4. Multiple power specifications;

Specification

CW-3000AG: applied to cool a single 80W CO2 laser tube (emitting rate lower than 60%)

CW-3000AH: applied to cool dual 1.5 KW CNC spindles or welding equipment;

Specfication

CW-3000AH: applied to cool dual 1.5 KW CNC spindles or welding equipment;

Model	CW-3000AG	CW-3000DG	CW-3000AF	CW-3000DF	CW-3000AH	CW-3000DH
Voltage	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 110V
Frequency	50/60Hz
Current	0.45A	0.9A	0.45A	0.9A	0.45A	0.9A
Radiating capacity	50W/℃
Tank capacity	9L
Inlet and outlet	External Φ10mm brass connector	Φ8mm speedy connector		External Φ8mm speedy connector
Max. lift	10M			12M
Max. flow	10L/min			13L/min
Protection	Flow alarm
N.W	9.5Kgs
G.W	12Kgs
Dimension	52 x 32 x 38cm (L x W x H)
Packing dimension	62 x 43 x 51cm (L x W x H)
