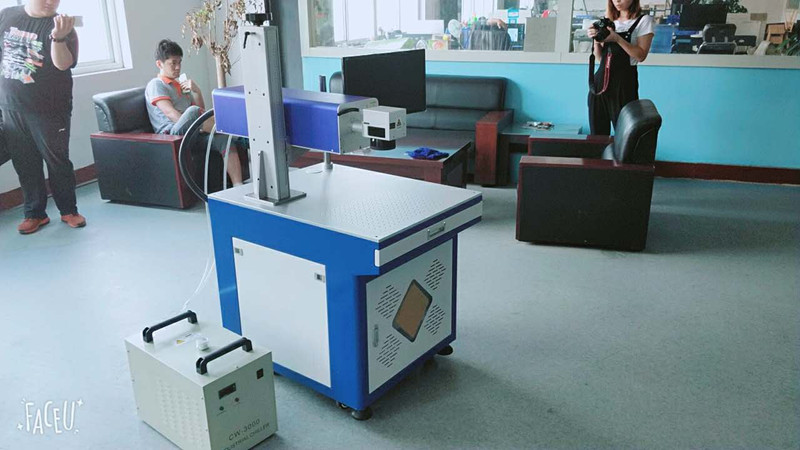

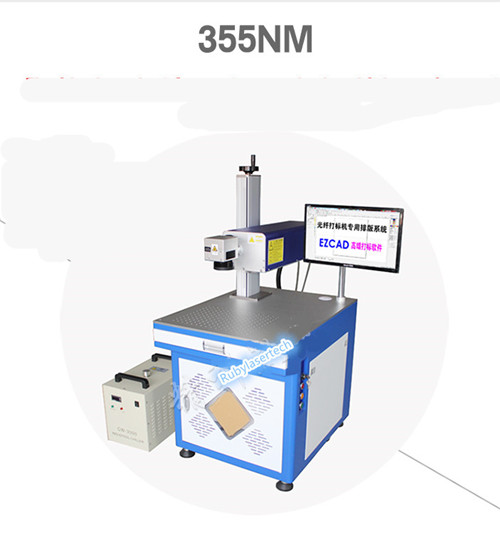

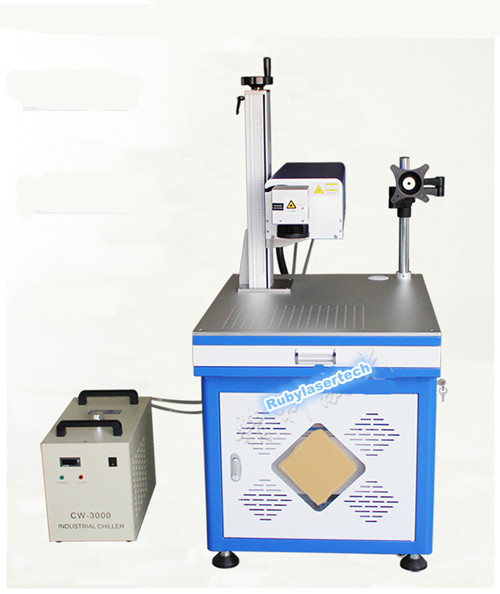

UV fiber laser marking machine

Features

1.It adopts 355nm UV fiber laser and is especially good for glass LCD, thin slice ceramics , sapphire and polymers material marking.

2.It adopts Germany technology high speed galvanometer.

3.CCD automatic identification and tracking system can be equipped.

4.It can be matched with CorelDraw, AutoCAD, Photoshop and others. It also support PLT,PCX,DXF,BMP,etc. It also can directly uses SHX and TTF FontLab.

5.It has lifting wheel scale. Operator can check exact scale.

Specification:

1.Fiber laser type: 355nm UV fiber laser

2.Laser power: 3W or 5W

3.Laser beam quality: M2 is less than 1.1

4.Output laser power: 0-100% continuously tunable

5.Output laser frequency: 5KHz-100KHz continuously tunable

6.Power stability(8H): Less than 1%RMS

7.Pulse width: 10-50NS

8.Laser spot diameter: Less than 0.01mm

9.Focus system:  Automatic red light focus

10.Marking type: Dynamic or static marking

11.Marking speed: 800PCS standard character/S

12.Min line width: Less than 0.005mm

13.Min character:  0.15mm

14.Repeatability: 0.001mm

15.Max marking area: 110x100mm-300x300mm

16.Machine size: 850x650x150mm

17.Machine size: 120Kg

18.System operation environment: WindowsXP

19.Cooling method: Forced water cooling

20.Electric power: 220V/One phase/50Hz/less than 800W

21.Laser module service time: 20000hours

Application materials

All glass, LCD, textiles ,thin slice ceramics , semiconductor silicon ,IC crystal, sapphire and polymers material marking or surface treatment.

Application industry

Mobile phone key, plastic transparent key, electronic component, integrated circuit (IC), electrical appliances, communication products, sanitary ware, tools & accessory, eyeglass & clock, pearls and jewels, auto parts, luggage decoration, kitchenware, stainless steel decoration and others.
