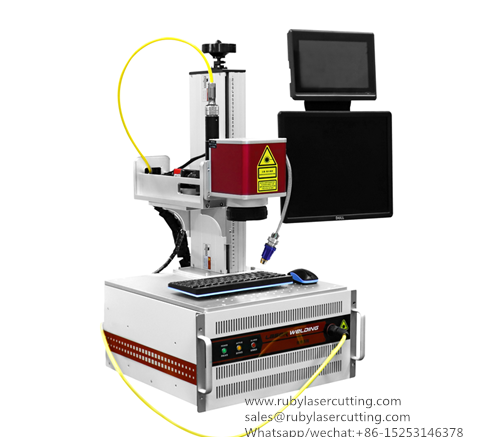

Desktop Type Pulsed Fiber Laser Welding Machine For Precision Components

Feature:

1. Compared with the traditional welding machine, the unique high energy and stability of the pulsed fiber laser welding machine determines its high-quality energy output.

2. The desktop type laser welding machine‘s pulse-high-frequency modulation two welding methods supports more delicate welding process. This series of fiber cores can be selected in a wide range, and It can be matched with appropriate configurations according to different materials and welding requirements, which can meet the processing requirements of high-speed welding, greatly improving the processing speed and production efficiency.

3.The laser welding machine for precision components is a desktop product, which saves processing space and is easy to install on the production line.

4.In addition, this desktop type laser welding machine has its own welding process control system, which has better integration and simpler operation, and two-in-one control imaging function.

5.The pulsed fiber laser welding machine has a uniform beam, which can flatten the Gaussian beam of the traditional laser, making the output of the beam more suitable for the welding beam, strengthen the compatibility of the laser with metal materials, and expand the range of product use.

6.Users can select optical fibers with different core diameters and customize any waveform to meet the differentiated processing requirements.

Specification:

1. Model No:RP-QCW-100W Pulsed Fiber Laser Welding Machine

2. Laser power:100W

3. L type laser welding head interface:QBHD30F100

4. Diameter of galvanometer aperture: 20mm

5. Field lens:F220

6. Red light CCD observation camera and 8-inch display: Yes

Application:

The laser welding machine for precision components is equipped with an integrated laser scanning control system and a high-speed beam splitter, and it is equipped with an automatic line body, which can realize high-speed multi-channel welding. This pulsed laser welding machine is mainly used for the welding of 3C precision devices, medical endoscope, mobile phone precision motor, battery electrode and other thin plates, as well as the fine cutting of metal and non-metal.
