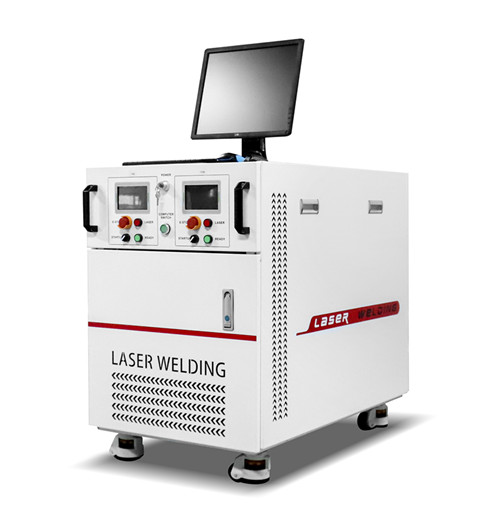

1064nm Energey Feedback 600 Watt nd Yag Laser Welding Euipment

Features

1. The 600 Watt ind YAG laser welding equipment has negative energy feedback function to ensure that the electric power of xenon lamp is stable and consistent each time, and the output energy fluctuation is small;

2. The energey feedback laser welding equipment supports any waveform setting, so that each material gets the most suitable waveform parameters;

3. The 1064nm laser welding equipment‘s’ peak power can reach up to 10KW, with good penetration;

4. The 600 Watt nd YAG laser welding machine‘s’ single point energy can reach up to 100J, which can be used to weld copper, aluminum, gold, silver and other highly reactive materials;

5. The energy feedback fiber laser welding equipment uses optical fiber transmission structure, flexible and simple with good automation equipment;

6. Modular structure design makes maintenance whichh Is simple and easy;

7. The 1064nm laser welding equipment supports multiple language switching, such as Simplified Chinese, Traditional Chinese, English, Korean, Vietnamese, etc.

Specification

1.Model No:RW-AG-600W

2. MaX wavelength:1064nm

3. Max output laser power:600W

4. MaX pulse energy:100J

5. MaX peak power:10KW

6. Pulse width1-20ms

7. Repeat pulse frequency:1-200HZ

8. Weld penetration:3.0mm stainless steel

9. Welding penetration:3.0mm carbon steel plate

10.Welding penetration:2.0mm aluminium sheet

11. Welding penetration:2.0mm brass

12. Laser beam splitting mode: precise energy splitting or high-speed time splitting

13.Closed-loop feedback control mode: real-time control of energy negative feedback of arbitrary waveform

14. Energy volatility:Less than 3%

15. Optical fiber coupling system: it can be selected if equipped with water cooling; if equipped with optical fiber, it has in-place alarm function (optional)

16.Fiber cable model No:SI200/300/400/600 ,GI400/600 Germany LEONI, double cladding, imported inner core.

17. Number of optical fiber paths: Less 6PCS standard optics fiber paths

18. Cooling method:External circulating water chiller with external circulating water flow

19. iming and positioning mode: diode red light positioning, CCD camera is optional

20. Machine power consumption: 22KW

21. Air switch: Japan Fuji air switch 63A, the main circuit has the power failure protection function of under-voltage and voltage cut-off.

22. Electrical power demand: AC380V, 50/60Hz

23. Internal circulation performance: it has water temperature, water level, water flow, water and electricity conductivity function alarm.

24. Internal circulation system: it has epoxy resin filtration (standard water pump, 50Hz. 60HZ is optional).

25. Machine size: 1460x660x1080mm.
