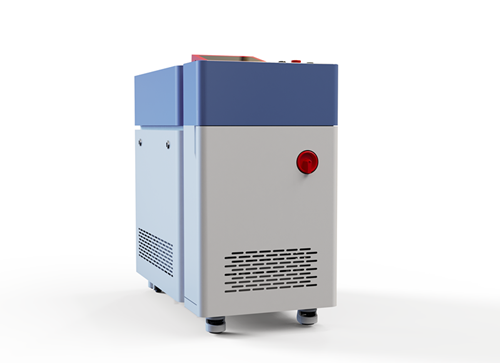

YAG 25/50/80W laser welding equipment

1. The water cooling laser welding equipment has the function of negative energy feedback to ensure that the electric power of xenon lamp is stable and consistent each time, and the output energy fluctuation is small;

2. The fiber transmission laser welding equipment supports any waveform setting, so that each material has the most suitable waveform parameters;

3. YAG 25/50/80W laser welding equipment‘s’ fiber transmission structure Is equiped with automation equipment whichh Is flexible and simple.

Order online

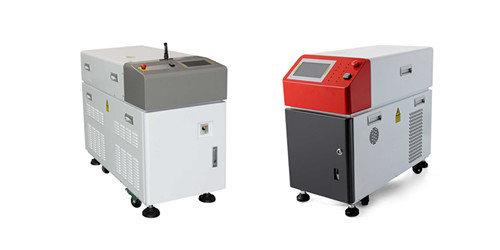

Water Cooling fiber transmission YAG 25/50/80W laser welding equipment

Features

2. The fiber transmission laser welding equipment supports any waveform setting, so that each material has the most suitable waveform parameters;

3. YAG 25/50/80W laser welding equipment‘s’ fiber transmission structure Is equiped with automation equipment whichh Is flexible and simple.

4. The water cooling laser welding equipment has built-in cooling structure whichh occupys small floor area;

5. The fiber transmission laser welding equipment use modular structure design whichh makes maintenance simple and easy;

6. YAG 25/50/80W laser welding equipment

support multiple language switching, such as Simplified Chinese, Traditional Chinese, English, Korean, Vietnamese, etc.

Specification

Model No	RW-YA-80	RW-YA-50	RW-YA-25
Wave length	1064nm	1064nm	1064nm
Max output laser power	80W	50W	25W
Max pulsed energy	30J	30J	25J
Max peak electrical power	3KW	3KW	2.5KW
Pulse width	0.1-20ms	0.1-20ms	0.1-20ms
Repeat pulse frequency	1-50HZ	1-50HZ	1-50HZ
Weld penetration/stainless steel	0.6mm	0.6mm	0.5mm
Weld penetration/carbon steel plate	0.6mm	0.6mm	0.5mm
Weld penetration/aluminium sheet	0.2mm	0.2mm	0.2mm
Weld penetration/brass	0.2mm	0.2mm	0.2mm
Laser beam splitting mode	precise energy splitting or high-speed time splitting
Closed-loop feedback control mode	real-time control of energy negative feedback of arbitrary waveform
Energy volatility	Less than 5%
Optical fiber coupling system	it can be selected if equipped with water cooling; if equipped with optical fiber, it has in-place alarm function (optional)
Fiber cable model No	SI200/300/400/600 ,GI400/600 Germany LEONI, double cladding, imported inner core.5/10/15/20/30meter cable Is optional
Number of optical fiber paths	Less 4PCS standard optics fiber paths
Cooling method	Internal water cooler		Air cooling
Aiming and positioning mode	diode red light positioning, CCD camera is optional
Machine power consumption	4KW	3KW	2.5KW
Air switch	Japan Fuji air switch 32A, the main circuit has the power failure protection function of under-voltage and voltage cut-off.
Electrical power demand	AC380V, 50/60Hz
Internal circulation performance	it has water temperature, water level, water flow, water and electricity conductivity function alarm.
Internal circulation system	it has epoxy resin filtration (standard water pump, 50Hz. 60HZ is optional).
Machine size	1060x500x800mm		800X500X800mm
